TYPY WYSTĘPUJĄCYCH OSTRZY
Professional standard quality hub, conical section, 6% Luer Lock
Stainless steel, triple bevelled canulla, bevel length suitable for intra muscular, intra dermal or intra venous applications.

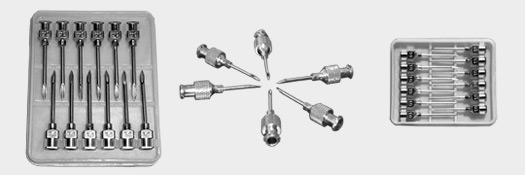

Available in dozen pc. Plastic box packing, and master box of one gross needles.
CODE SIZE
91_271. 27G x 1" ( 13mm x 0.4mm)
91_272. 27G x 1" ( 25mm x 0.4mm)
91_273. 27G x 1.1/4" ( 32mm x 0.4mm)
91_274. 27G x 1.1/2" ( 40mm x 0.4mm)
CODE SIZE
91_261. 26G x 1" ( 13mm x 0.45mm )
91_262. 26G x 1" ( 25mm x 0.45mm )
91_263. 26G x 1.5/8" ( 32mm x 0.45mm )
91_264. 26G x 1.1/2" ( 40mm x 0.45mm )
CODE SIZE
91_251. 24G x 1" ( 25mm x 0.55mm )
91_242. 24G x 1.1/4" ( 32mm x 0.55mm )
91_243. 24G x 1.1/2" ( 40mm x 0.55mm )
CODE SIZE
91_231. 23G x 1" ( 25mm x 0.6mm )
91_232. 23G x 1.1/4" ( 32mm x 0.6mm )
91_233. 23G x 1.1/2" ( 40mm x 0.6mm )
CODE SIZE
91_221. 22G x 1" ( 25mm x 0.7mm )
91_222. 22G x 1.1/4" ( 32mm x 0.7mm )
91_223. 22G x 1.1/2" ( 40mm x 0.7mm )
CODE SIZE
91_211. 21G x 1" ( 25mm x 0.8mm )
91_212. 21G x 1.1/4" ( 32mm x 0.8mm )
91_213. 21G x 1.1/2" ( 40mm x 0.8mm )
CODE SIZE
91_201. 20G x 1" ( 25mm x 0.9mm )
91_202. 20G x 1.1/4" ( 32mm x 0.9mm )
91_203. 20G x 1.1/2" ( 40mm x 0.9mm )
Also available on request
1 Record Fitting Needles
2 Needles with Stylet wires for bore cleaning.
3 LANCET POINT (Back cut) Cannulae.
4 Card Board Box Packing
The triple beveled cannula with thick walled S.S. Capillary for more strength to point.
Available in 1 Dozen plastic box packing.Best suited for veterinary professionals.
CODE SIZE
92_121. 12G x 3" ( 20mm x 2.8mm )
92_122. 12G x 1" ( 25mm x 2.8mm )
92_123. 12G x 1.1/4" ( 30mm x 2.8mm )
92_124. 12G x 1./1.2" ( 40mm x 2.8mm )
CODE SIZE
92_ 131. 13G x 1" ( 25mm x 2.5mm )
98 101. 13G x1/2" ( 40mm x 2.5mm )
CODE SIZE
92_141. 14G x 1" ( 13mm x 2.00mm )
92_142. 14G x 5/8" ( 15mm x 2.00mm )
92_143. 14G x 3" ( 20mmx 2.00mm )
92_144. 14G x 1" ( 25mm x 2.00mm )
92_145. 14G x 1.1/4" ( 30mm x 2.00mm )
92_146. 14G x 1.1/2" ( 40mm x 2.00mm )
CODE SIZE
92_151. 15G x 1" ( 13mm x 1.8mm )
92_152. 15G x 5/8" ( 15mm x 1.8mm )
92_153. 15G x 3" ( 20mm x 1.8mm )
92_154. 15G x 1" ( 25mm x 1.8mm )
92_155. 15G x 1.1/4" ( 30mm x 1.8mm )
92_156. 15G x 1.1/2" ( 40mm x 1.8mm )
CODE SIZE
92_161. 16G x 1" ( 13mm x 1.6mm )
92_162. 16G x 5/8" ( 15mm x 1.6mm )
92_163. 16G x 3" ( 20mm x 1.6mm )
92 164. 16G x 1" ( 25mm x 1.6,mm )
92 165. 16G x 1.1/4" ( 30mm x 1.6mm )
92 166. 16G x 1.1/2" ( 40mm x 1.6mm )
CODE SIZE
92_171. 17G x 1" ( 13mm x 1.5mm )
92_172. 17G x 5/8" ( 15mm x 1.5mm )
92_173. 17G x 3" ( 20mm x 1.5mm )
92_174. 17G x 1" ( 25mm x 1.5mm )
92_175. 17G x 1.1/4" ( 30mm x 1.5mm )
92_176. 15G x 1.1/2" ( 40mm x 1.5mm )
CODE SIZE
92_181. 18G x 1" ( 13mm x 1.3mm )
92_182. 18G x 5/8" ( 15mm x 1.3mm )
92_183. 18G x 3" ( 20mm x 1.3mm )
92_184. 18G x 1" ( 25mm x 1.3mm )
92_185. 18G x 1.1/4" ( 30mm x 1.3mm )
92_186. 18G x 1.1/2" ( 40mm x 1.3mm )
CODE SIZE
92_191. 19G x 1" ( 13mm x 1.00mm )
92_192. 19G x 5/8" ( 15mm x 1.00mm )
92_193. 19G x 3" ( 20mm x 1.00mm )
92_194. 19G x 1" ( 25mm x 1.00mm )
92_195. 19G x 1.1/4" ( 30mm x 1.00mm )
92_196. 19G x 1.1/2" ( 40mm x 1.00mm )
CODE SIZE
92_201. 20G x 1" ( 13mm x 0.9mm )
92_202. 20G x 3" ( 20mm x 0.9mm )
92_203. 20G x 1" ( 25mm x 0.9mm )
92_204. 20G x 1.1/4" ( 30mm x 0.9mm )
92_205. 20G x 1.1/2" ( 40mm x 0.9mm )
Also available on request
1 Record Fitting Needles
2 Needles with Large Round Knurled Chrome Plated Hubs, for secure gripping.
The Aspiration needles with bigger size of super finished, chrome plated hub and super smooth lapped finished cannulae, with regular bevel. Available from G 10 to G 24 in any length combinations.
One dozen pcs. Inserted in plastic corrugated sheet and packed in outer card board box.
CODE SIZE
93_101. 10G x 2" ( 50mm x 3.3mm )
93_102. 10G x 2.1/2" ( 60mm x 3.3mm )
93_103. 10G x 3" ( 75mm x 3.3mm )
93_104. 10G x 4"_ ( 100mm x 3.3mm )
CODE SIZE
93_111. 11G x 2" ( 50mm x 3.00mm )
93_112. 11G x 2.1/2" ( 60mm x 3.00mm )
93_113. 11G x 3" ( 75mm x 3.00mm )
93_114. 11G x 4" ( 100mm x 3.00mm )
93_115. 11G x 5" ( 130mm x 3.00mm )
93_116. 11G x 6" ( 150mm x 3.00mm )
CODE SIZE
93_121. 12G x 2" ( 50mm x 2.8mm )
93_122. 12G x 2.1/2" ( 60mm x 2.8mm )
93_123. 12G x 3" ( 75mm x 2.8mm )
93_124. 12G x 4" ( 100mm x 2.8mm )
93_125. 12G x 5" ( 130mm x 2.8mm )
93_126. 12G x 6" ( 150mm x 2.8mm )
93_127. 12G x 8" ( 200mm x 2.8mm )
93_128. 12G x 10" ( 250mm x 2.8mm )
CODE SIZE
93_131. 13G x 2" ( 50mm x 2.5mm )
93_132. 13G x 2.1/2" ( 60mm x 2.5mm )
93_133. 13G x 3" ( 75mm x 2.5mm )
93_134. 13G x 4" ( 100mm x 2.5mm )
93_135. 13G x 5" ( 130mm x 2.5mm )
93_136. 13G x 6" (150mm x 2.5mm )
93_137. 13G x 8" ( 200mm x 2.5mm )
93_138. 13G x 10" (250mm x 2.5mm )
CODE SIZE
93_141. 14G x 2" ( 50mm x 2.00mm )
93_142. 14G x 2.1/2" ( 60mm x 2.00mm )
93_143. 14G x 3" ( 75mm x 2.00mm )
93_144. 14G x 4" ( 100mm x 2.00mm )
93_145. 14G x 5" ( 130mm x 2.00mm )
93_146. 14G x 6" ( 150mm x 2.00mm )
93_147. 14G x 8" ( 200mm x 2.00mm )
93_148. 14G x 10" ( 250mm x 2.00mm )
CODE SIZE
93_151. 15G x 2" ( 50mm x 1.8mm )
93_152. 15G x 2.1/2" ( 60mm x 1.8mm )
93_153. 15G x 3" ( 75mm x 1.8mm )
93_154. 15G x 4" ( 100mm x 1.8mm )
93_155. 15G x 5" ( 130mm x 1.8mm )
93_156. 15G x 6" ( 150mm x 1.8mm)
93_157. 15G x 8" ( 200mm x 1.8mm )
93_158. 15G x 10" ( 250mm x 1.8mm )
CODE SIZE
93_161. 16G x 2" ( 50mm x 1.6mm )
93_162. 16G x 2.1/2" ( 60mm x 1.6mm )
93_163. 16G x 3" ( 75mm x 1.6mm )
93_164. 16G x 4" ( 100mm x 1.6mm )
93_165. 16G x 5" ( 130mm x 1.6mm )
93_166. 16G x 6" ( 150mm x 1.6mm )
93_167. 16G x 8" ( 200mm x 1.6mm )
93_168. 16G x 10" ( 250mm x 1.6mm )
CODE SIZE
93_171. 17G x 2" ( 50mm x 1.5mm )
93_172. 17G x 2.1/2" ( 60mm x 1.5mm )
93_173. 17G x 3" ( 75mm x 1.5mm )
93_174. 17G x 4" ( 100mm x 1.5mm )
93_175. 17G x 5" ( 130mm x 1.5mm )
93_176. 17G x 6" ( 150mm x 1.5mm )
93_777. 17G x 8" ( 200mm x 1.5mm )
93_178. 17G x 10" ( 250mm x 1.5mm )
CODE SIZE
93_181. 18G x 2" ( 50mm x 1.3mm )
93_182. 18G x 2.1/2" ( 60mm x 1.3mm )
93_183. 18G x 3" ( 75mm x 1.3mm )
93_184. 18G x 4" ( 100mm x 1.3mm )
93_185. 18G x 5" ( 130mm x 1.3mm )
93_186. 18G x 6" ( 150mm x 1.3mm )
93_187. 18G x 8" ( 200mm x 1.3mm )
93_188. 18G x 10" ( 250mm x 1.3mm )
CODE SIZE
93_191. 19G x 2" ( 50mm x 1.00mm )
93_192. 19G x 2.1/2" ( 60mm x 1.00mm )
93_193. 19G x 3" ( 75mm x 1.00mm )
93_194. 19G x 4" ( 100mm x 1.00mm )
93_195. 19G x 5" ( 130mm x 1.00mm )
93_196. 19G x 6" ( 150mm x 1.00mm )
93_197. 19G x 8" ( 200mm x 1.00mm )
93_198. 19G x 10" ( 250mm x 1.00mm )
CODE SIZE
93_201. 20G x 2" ( 50mm x 0.9mm )
93_202. 20G x 2.1/2" ( 60mm x 0.9mm )
93_203. 20G x 3" ( 75mm x 0.9mm )
93_204. 20G x 4" ( 100mm x 0.9mm )
93_205. 20G x 5" ( 130mm x 0.9mm )
93_206. 20G x 6" ( 150mm x 0.9mm )
93_207. 20G x 8" ( 200mm x 0.9mm )
93_208. 20G x 10" ( 250mm x 0.9mm )
CODE SIZE
93_211. 21G x 2" ( 50mm x 0.8mm )
93_212. 21G x 2.1/2" ( 60mm x 0.8mm )
93_213. 21G x 3" ( 75mm x 0.8mm )
93_214. 21G x 4" ( 100mm x 0.8mm )
93_215. 21G x 5" ( 130mm x 0.8mm )
93_216. 21G x 6" ( 150mm x 0.8mm )
93_217. 21G x 8" ( 200mm x 0.8mm )
93_218. 21G x 10" ( 250mm x 0.8mm )
CODE SIZE
93_221. 22G x 2" ( 50mm x 0.7mm )
93_222. 22G x 2.1/2" ( 60mm x 0.7mm )
93_223. 22G x 3" ( 75mm x 0.7mm )
93_224. 22G x 4" ( 100mm x 0.7mm )
93_225. 22G x 5" ( 130mm x 0.7mm )
93_226. 22G x 6" ( 150mm x 0.7mm )
93_227. 22G x 8" ( 200mm x 0.7mm )
93_228. 22G x 10" ( 250mm x 0.7mm )
CODE SIZE
93_ 231. 23G x 2" ( 50mm x 0.6mm )
93_ 232. 23G x 2.1/2" ( 60mm x 0.6mm )
93_ 233. 23G x 3" ( 75mm x 0.6mm )
93_ 234. 23G x 4" ( 100mm x 0.6mm )
93_ 235. 23G x 5" ( 130mm x 0.6mm )
93_ 236. 23G x 6" ( 150mm x 0.6mm )
93_ 237. 23G x 8" ( 200mm x 0.6mm )
93_238. 23G x 10" ( 250mm x 0.6mm )
CODE SIZE
93_241. 24G x 2" ( 50mm x 0.55mm )
93_242. 24G x 2.1/2" ( 60mm x 0.55mm )
93_243. 24G x 3" ( 75mm x 0.55mm )
93_244. 24G x 4" ( 100mm x 0.55mm )
93_245. 24G x 5" ( 130mm x 0.55mm )
93_246. 24G x 6" ( 150mm x 0.55mm )
93_247. 24G x 8" ( 200mm x 0.55mm )
93_248. 24G x 10" ( 250mm x 0.55mm )
Also available on request
1 Any other gauge / length combination, not indicated in above list.
2 Singly sleeved packed needles.
3 Other types of hub, other then standard hub.
Veterinary (birds) needles are available in following sizes, with standard luer lock hub, and standard beveled cannula. Available in dozen pc. Plastic box packing, and master box of one gross needles.
CODE SIZE
94_181 18G x 1" ( 13mm x 1.3mm )
94_191 19G x 1" ( 13mm x 1.00mm )
94_201 20G x 1" ( 13mm x 0.9mm )
94_211 21G x 1" ( 13mm x 0.8mm )
94_221 22G x 1" ( 13mm x 0.7mm )
94_231 23G x 1" ( 13mm x 0.6mm )
Reusable Animal Feeding & Dosing Needles are used to feed debilitated or new born animals, by placing food or medication down esophagus and are thus designed to meet needs of farmacologists, toxicologists, pathologists, and other bio medical researchers working with laboratory animals.
Precision_balled tip suited for feeding and dosing without injury to sensitive tissues ensures self_placement in birds, small mammals, and reptiles.
CODE SIZE
95_181 G18 x 2"
95_141 G14 x 3"
95_101 G10 x 6"
Needles available curved or straight.
High quality spinal needle, with different bevel designs that allows exceptional control when penetrating the dura. "Swent" spinal needles comes with brass electroplated hub and associated stylet fall out, with a quincke type point which spreads rather then cuts longitudinal dura fibers. 89mm long, packed in pre ETO sterile peel pack pouch type pack of medical grade, ready to use and can be disposed off, after use. Supplied in 5 different point styles such as 22 degree, 30 degree, 45 degree, 90 degree and Whitacre type
a
b Spinal (L.P.)Needle
Tuohy's Epidural Anesthesia Needle
a SPINAL (L.P.) NEEDLE: _ Metal Hub, Un sterile
This needle has leak proof joint between hub & cannulae with lapped finish. The adapter has accurately matched stylte wire for smooth gliding. The tip of the needles is designed to spread rather than cut longitudinal fibers of the dura. Packed in individual plastic packing.
CODE SIZE
96_161 16G x 3.1/2" ( 89mm )
96_181 18G x 3.1/2" ( 89mm)
96_191 19G x 3.1/2" ( 89mm )
96_201 20G x 3.1/2" ( 89mm )
96_211 21G x 3.1/2" ( 89mm )
96_221 22G x 3.1/2" ( 89mm )
96_231 23G x 3.1/2" ( 89mm )
96_241 24G x 3.1/2" ( 89mm )
96_251 25G x 3.1/2" ( 89mm )
96_261 26G x 3.1/2" ( 89mm )
96_271 27G x 3.1/2" ( 89mm )
96_505 Any Type of L.P. Needles, Not Mentioned above.
b
TUOHY'S EPIDURAL (Anesthesia) NEEDLE: _ WITH ALL METAL HUB, Supplied Un sterile.
HUBER POINT, solder joint between hub & cannulae, super finish and lapped outer surface. The Luer Lock hub with matched bevel point dulled for easy catheter introduction.
CODE SIZE
96_141E 14G x 3" ( 76mm )
96_142E 14G x 3.1/2" ( 89mm )
96_161E 16G x 3" ( 76mm )
96_162E 16G x 3.1/2" ( 89mm )
96_163E 16G x 4.1/2" ( 115mm )
96_164E 16G x 5" ( 130mm )
96_165E 16G x 7" ( 180mm )
96_171E 17G x 3" ( 76mm )
96_172E 17G x 3.1/2" ( 89mm )
96_173E 17G x 4" ( 100mm )
96_174E 17G x 7" ( 180mm )
96_181E 18G x 3" ( 76mm )
96_182E 18G x 3.1/2" ( 89mm )
96_191E 19G x 3" ( 76mm )
96_201E 20G x 3" ( 76mm )
96_211E 21G x 3" ( 76mm )
96_221E 22G x 3" ( 76mm )
96_231E 23G x 3" ( 76mm )
96_241E 24G x 3" ( 76mm )
96_505E Any Type of Epidural Needles, Not Mentioned above.
